Automatic Screw Locking Machine SF-7024-2Z

Introduction:Automatic Screw Locking Machine SF-7024-2Z, vacuum suction screw structure,can realize the locking function of the deep hole/bevel screw meson screw of the product lock screw position.

Product Description

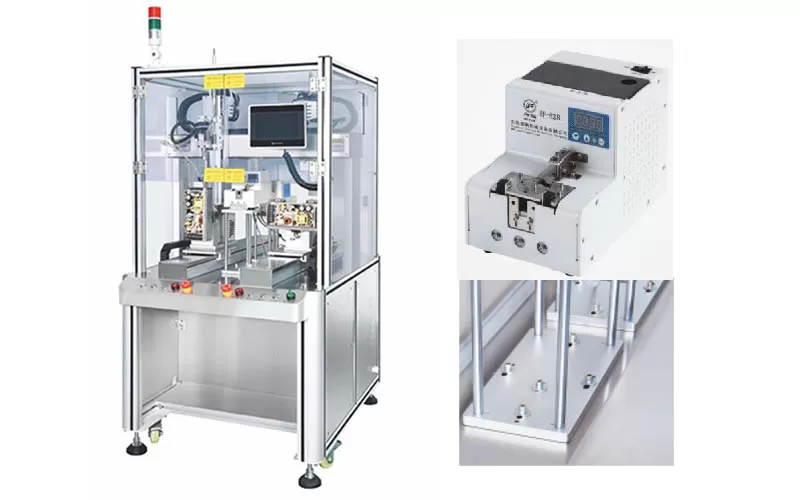

Automatic Screw Locking Machine SF-7024-2Z
● Vacuum suction screw structure,can realize the locking function of the deep hole/bevel screw meson screw of the product lock screw position.
● The double mode is alternately locked at the same time and the two different specifications screws (or separate operation)are replaced to realize the high efficiency working mode)
● Supports missing locking/ tooth sliding/tooth floating alarm function
● Supports the adjustment function of front-loading and rear-taking or front-loading and front-taking
● Supports auto-sensing startup function
● Supports servo electric batch speed and torque self adjusting function
● Supports hand drag adjustment to lock screw point adjustment function
● The vertical base does not require an additional worktable and can be flexibly moved and adjust the working position

Product Parameters

Screw locking range(XY1Z/XY2Z)	240×700×135mm 240×700×135mm
Screw locking time	1.0~1.5s/pcs
Repetitive accuracy	±0.03mm
Program recording mode	15 groups, 99 points per group
Electric batch mode	Precision servo motor (Mitsubishi/Delta)
Feeding mode	Turntable screw feeding (self-owned brand)
Control system	MCU + touch screen control system
Motor system	Precision stepping (closed loop) motor (domestic brand)
Driving mode	Synchronous belt/precision linear guide (Taiwan HIWIN)
Input power supply	220V/50HZ
Working air current	0.4~0.6MPA
Edit mode	Hand drag & teaching
Working environment temperature	5~40°
Humidity of working environment	20-90%
Applicable screw specifications	All types of specifications
Suitable for locking screw size	M1.5~M4(the length of screw donot over 16mm),customized if it exceeds the range
Machine size(LMH)	1090x810x1750mm
Machine weigh	120KG

Product Application

SF-7024-2Z Automatic Screw Locking Machine is mainly used in toys, small appliances, electronic product, instruments and apparatus, lighting,plastic parts, alloy parts, communication equipment, audio and other screw locking processes.

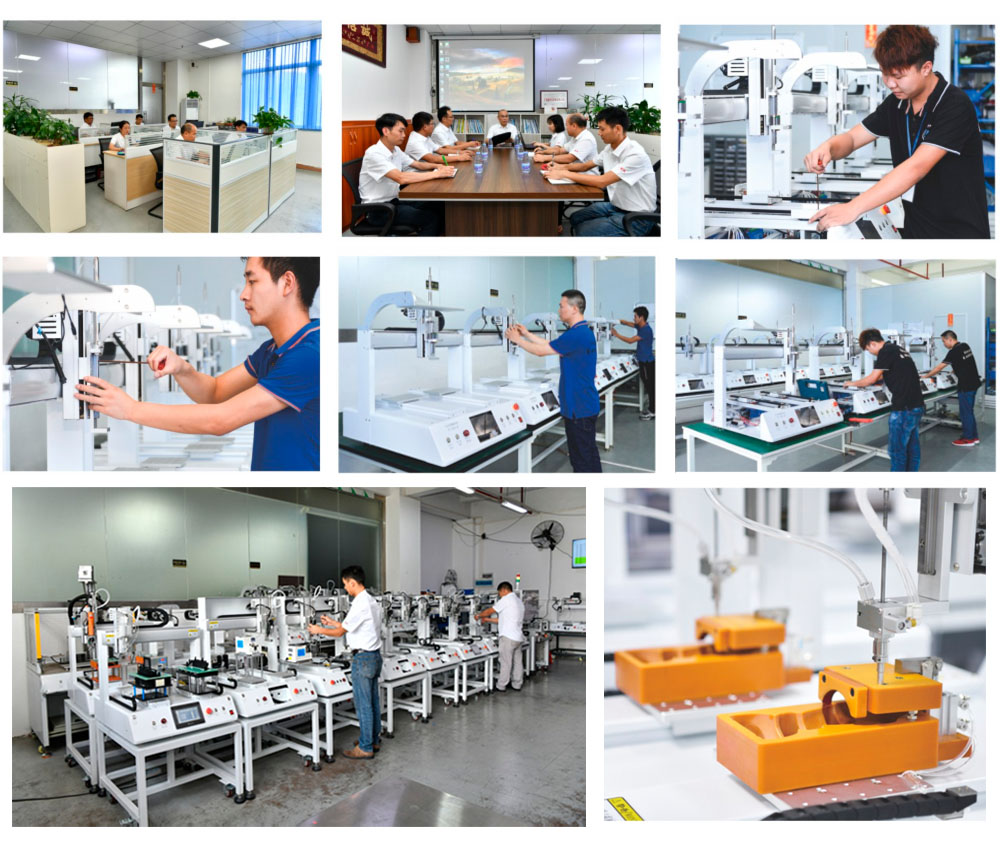

Manufacture Ability

Yoda Machinery Equipment is a professional equipment company specializing in the research and development, production and sales of automatic locking screw machines and non-standard automation, and enjoys a high reputation in the industry.
screw locking machine manufacture ability
