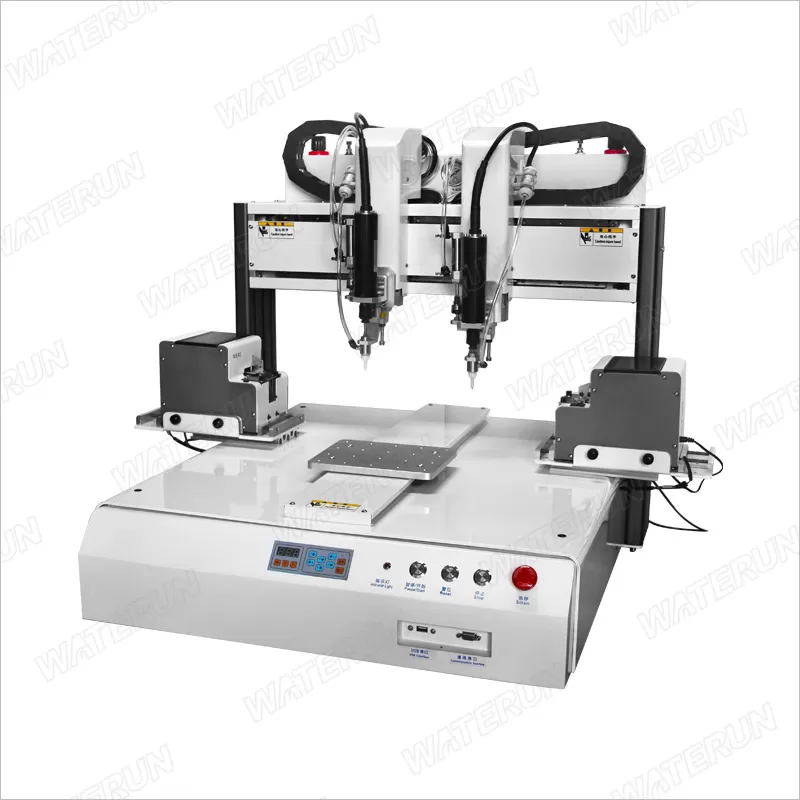

Introduction:Automatic screw tightening robot, double X-axis screw fastening robot
Product Description
Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
Features:
1.The stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy and repeat precision.
2.Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
3.It guarantees the high precision of screw fastening which cannot be achieved by the traditional manual screw fastening. Besides, it improves the production efficiency and reduces the labor cost.
4.Suitable for most of the screws, especially the stainless steel screws.
5.It is easy to learn the operation. One operator can operate several machines at the same time.

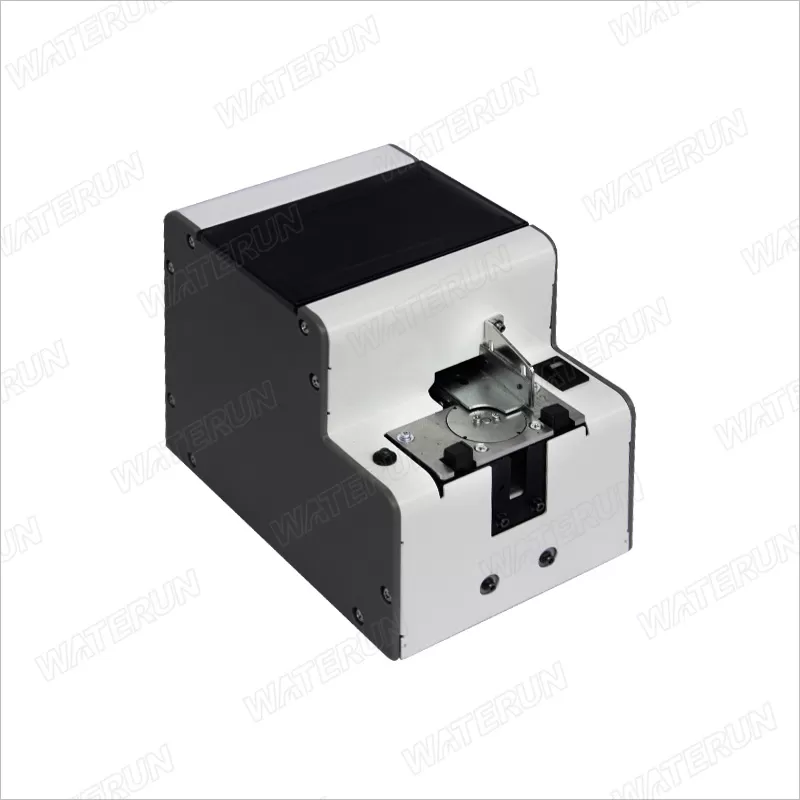

6.The rail of the screw feeder is adjustable. (Applicable screws: M1.5 – M5.0)
Applications:
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
Model | LS-400XX double X-axis automatic screw locking machine |
Voltage | 110V / 220V AC |
Drive Mode | 5-Axis precision step motor |
Operating Range (X * Y * Z) | 500 x 400 x 100mm |
Movement Speed | X * Y Axis: 0.1~800mm/sec, Z Axis :0.1~400mm/sec |
Repeatability Accuracy | ±0.02mm (X * Y * Z) |
Minimum Analysis | 0.01mm (X * Y * Z) |
Maximum Load Weight | 8kgs (for work platform) |
Program Capacity | Max 255 Programs |
Operate Temperature | 10℃~40℃ |
Operate Humidity | 20~90% |
External Dimensions | 900mm x 1100mm x 800mm |
Weight | about 85kgs |
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for automatic screw locking machine?
A: Generally it is 5-10 days if the goods are in stock. or it is 25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
