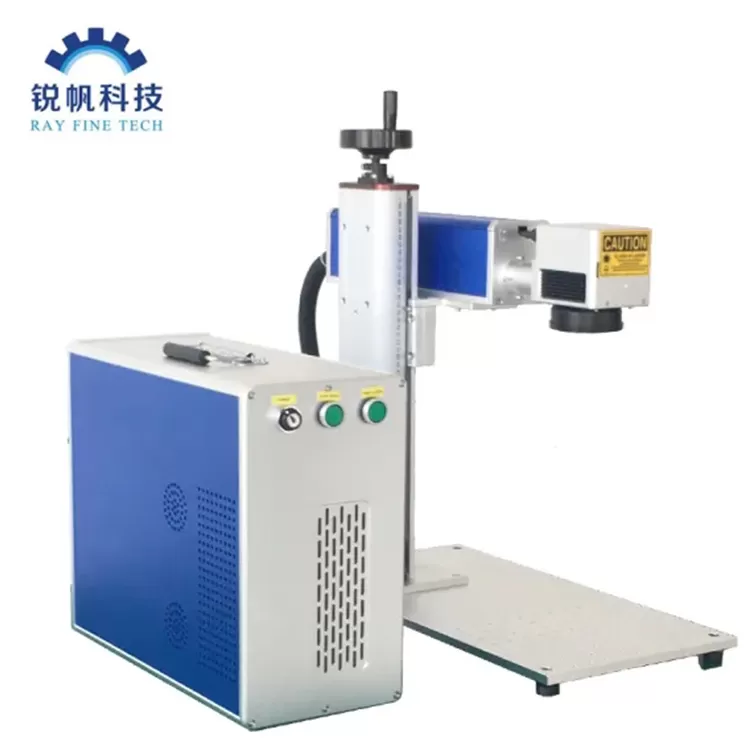

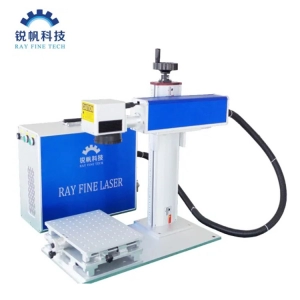

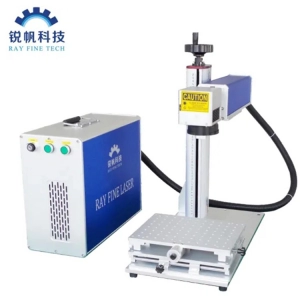

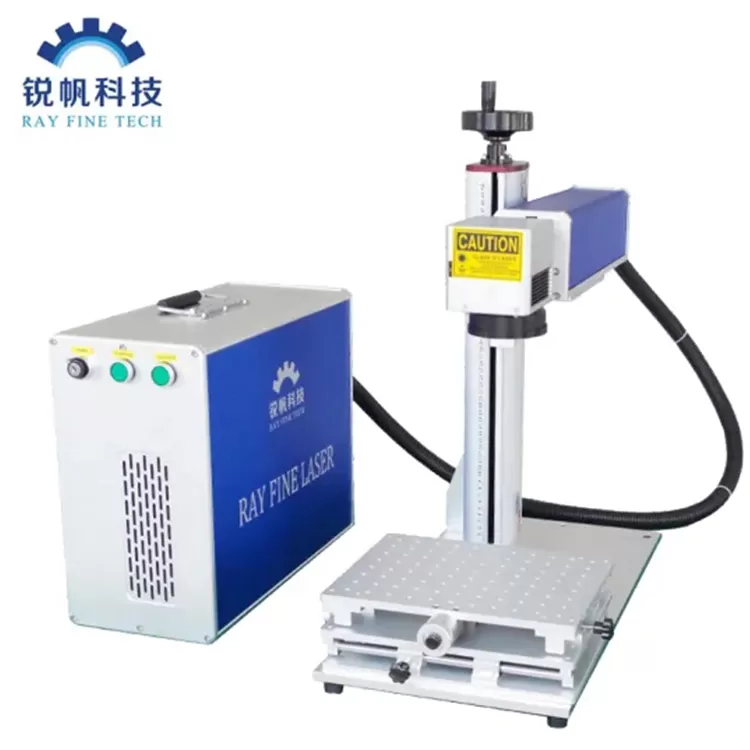

Introduction:Fiber Laser Marker Equipment
| Model | RF-F-60W/RF-F-100W/120w |
| Fiber laser source | JPT YDFLP M1+-S |
| Main board and control software | Genuine EZCAD (BJJCZ) which supports XP Win7 /8/10 |
| Power output | 60W/100W/120w |
| Wavelength | 1064nm |
| Marking speed | 8000mm/s |
| Marking Area | 110mm×110mm(optional) |
| Min. linear width | 0.001mm |
| Min. Character size | 0.2mm |
| Beam Quality M2 | <1.3 |
| Maximum Pulse Energy | 0.8 MJ |
| Full power repetition range | 40~1000KHZ |
| Pulse repetition Rate Range | 1~1000KHZ |
| Pulse Duration | 6~250ns |
| Out beam diameter | 7 ±0.5mm |
| Supply voltage | AC 110/220V±10%, 50/60Hz |
| Power cable style | According to your request (Asian /European / American standard) |
| Focus | Double red dots positioning |
| Cooling way | Air cooling |
| Operation temperature | 0~40ºC |
| Package dimension Lx WxH | 75x41x79CM |
| Package gross weight | 60kgs |
| FDA /CE Certificate | Approved |
