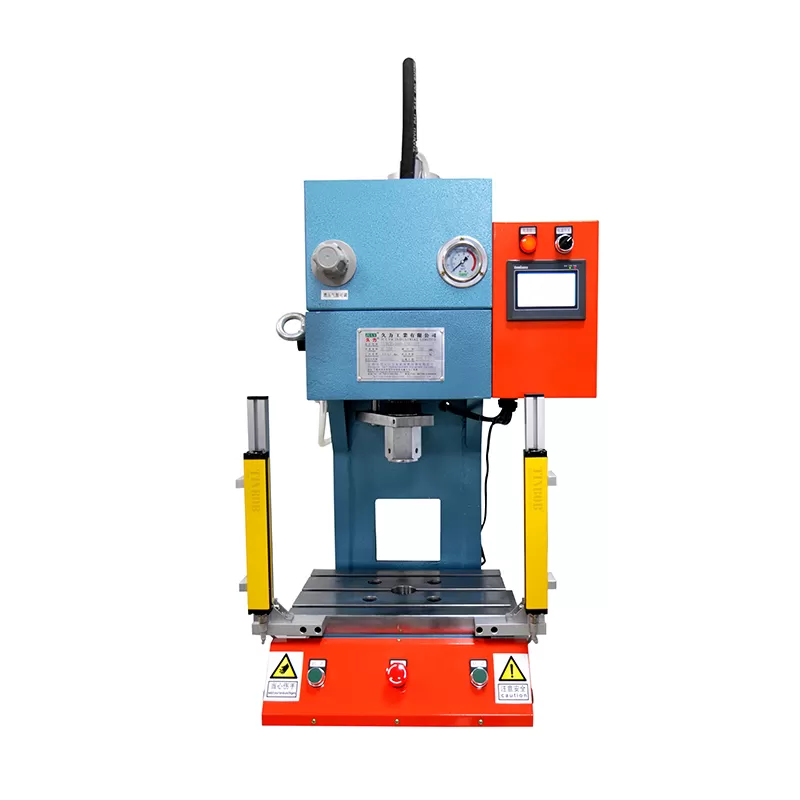

Introduction:ex-factory price nice quality aluminium hole punch
ex-factory price nice quality aluminium hole punch
| Model number | JLYCZ-20T |
| Maximum working height | 260mm |
| Total trip | 100mm |
| Booster trip | 15mm |
| Table area | 270*400mm |
| Working frequency | 20-25/min |
| Booster cylinder model | JLWF-160-L28-Q185 |
| Air source pressure(Mpa) | Compressor output(Kg) | Backhaul pull(Kg) |
| 0.3 | 10000 | 280 |
| 0.4 | 13900 | 370 |
| 0.5 | 17000 | 470 |
| 0.6 | 20000 | 560 |
| 0.7 | 24000 | 660 |
| 0.8 | 27900 | 750 |
1.Compressed air as power source,simple operation;
2.No oil pressure system generated by the noise,environmental pollution,energy saving and consumption reduction;

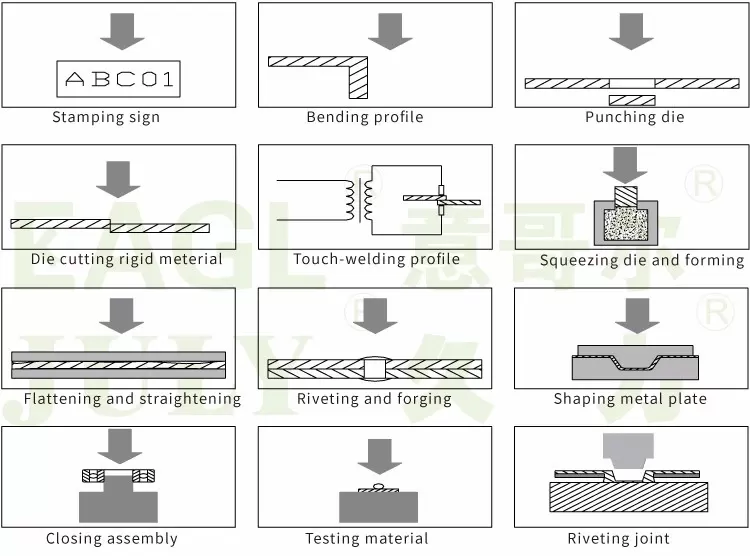

3.Multiple functional USES:pressing bearing,punching,riveting,assembly,etc.
4.The output size is controllable,only need to adjust the intake pressure,simple,convenient;
5.Arch frame design,convenient loading and unloading,ergonomic,suitable for long-term operation;
6.With counter,voltage holding time can be adjusted;
7.It can be equipped with hegh,medium and standard work table,grating,fender,heating function,blowing and other functions;
8.Can be customized.
