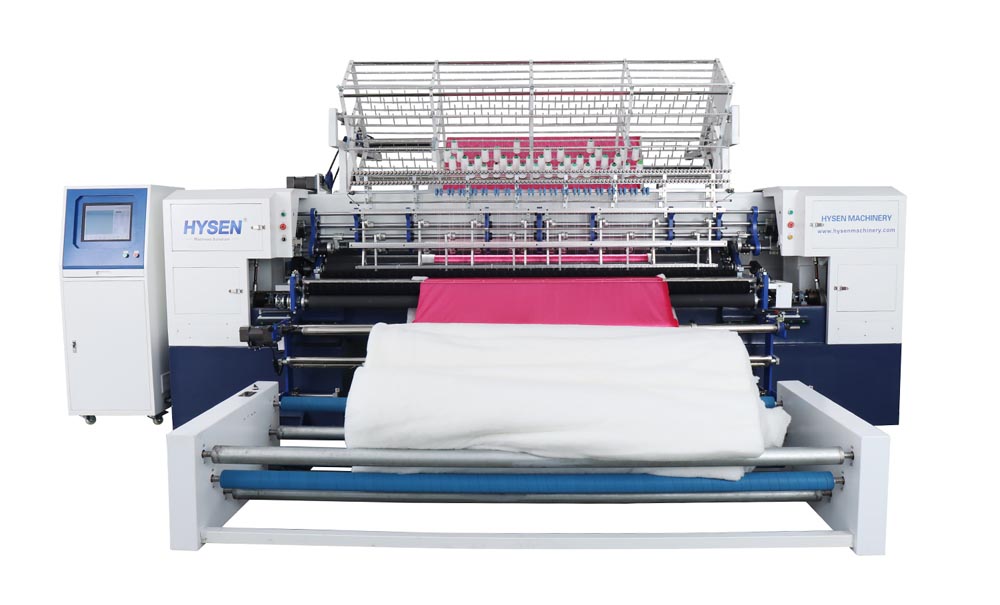

HSY128 Shuttle Multi-Needle Quilting Machine

Introduction:HSY128 High Speed Automatic Shuttle Multi-Needle Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting pre

Product Description

HSY128 High Speed Automatic Shuttle Multi-Needle Quilting Machine，It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast！The saddle and roller are driven by servo and the main shaft is controlled by frequency converter. Easy preparation of CAD drawings extremely precise.

Product Function

HSY128 Shuttle Mattress Quilting Machine Detail

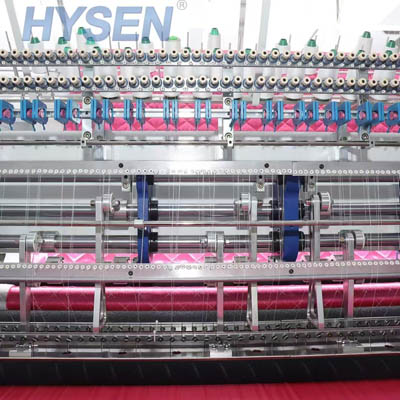

1. The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.

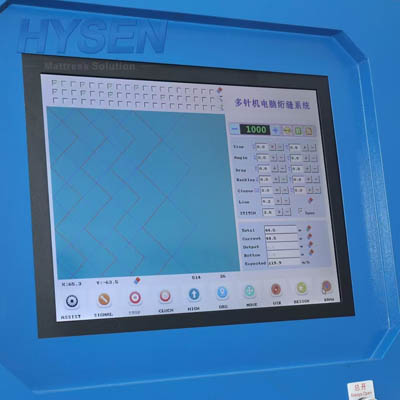

2. Adopt CAD drawing method, precise graphics, convenient and quick.
3. Four-axis drive machine is more solid performance is more stable.
4. Running status detection and prompting, the machine's operation can be seen at a glance.
5. Four-axis drive machine is more solid performance is more stable.

Technical Parameters

MODEL	HSY128
DIMENSION(LWH)	5600x2450x2550mm
QUILTING WIDTH	3300
SPACE BETWEEN NEEDLE ROWS	76.2
SPACE BETWEEN NEEDLES	25.4
X-AXIS MOVEMENT DISPLACEMENT	305
QUILTING THICKNESS	≤30mm
STILCH LENGTH	2‐6
PRODUCTION SPEED	70-150m/h
MODEL OF NEEDLE	14#/16#/19#
MAIN SHAFT SPEED	400-1000RPM
POWER	7KW
VOLTAGE	380V/50H 220V/60H
GROSS WEIGHT	5000Kg

Product Details

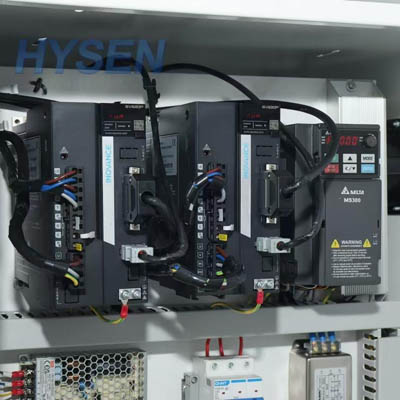

Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.

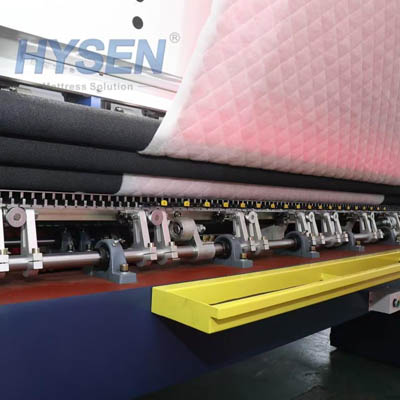

Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)	Easy preparation of CAD drawings extremely precise.

Application Range

Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
