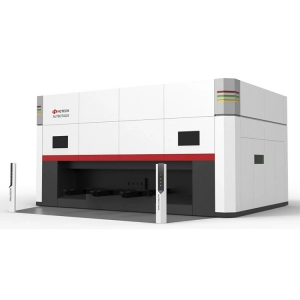

3D Laser Cutting Machine

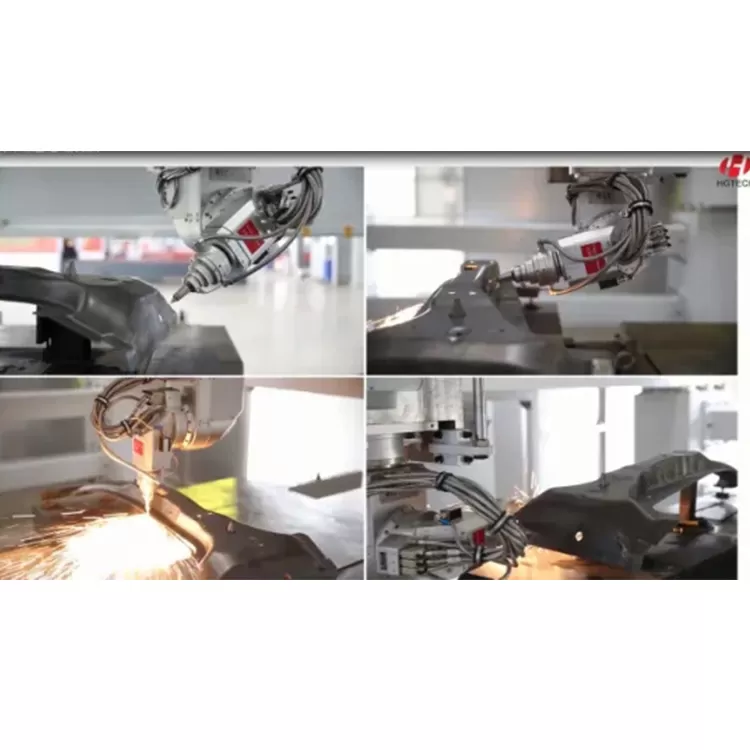

Introduction:3D Laser Cutting Machine

Product Description

Advantages:

1.Stability: designed in elevated gantry structure, comparing with cantilever structure,more stable.
2.High acceleration:higher positioning speedguarantee cutting efficiency and precision in long-term.
3.High efficiency: maxsimultaneous speed is 166m/min, max simultaneous acceleration is 1.7G, minstation shift for rotation work table is 3s, and max cutting speed is 30m/min.
4.Multi-station: realizerapid machining for different parts, and automatically loading and unloading.
5.Security: machineprotection device meet with international standard CE/CDRH.
6.Cost efficiency: performance as good as foreign brand, shorter delivery period, moreflexible budget, lower maintanance cost.

Features:

1.Axis rotate unlimitedly
2.Max positioning speed:360°/s
3.Quick boring
4.Auto focusing
5.Small angle parts cutting
6.Crash protection

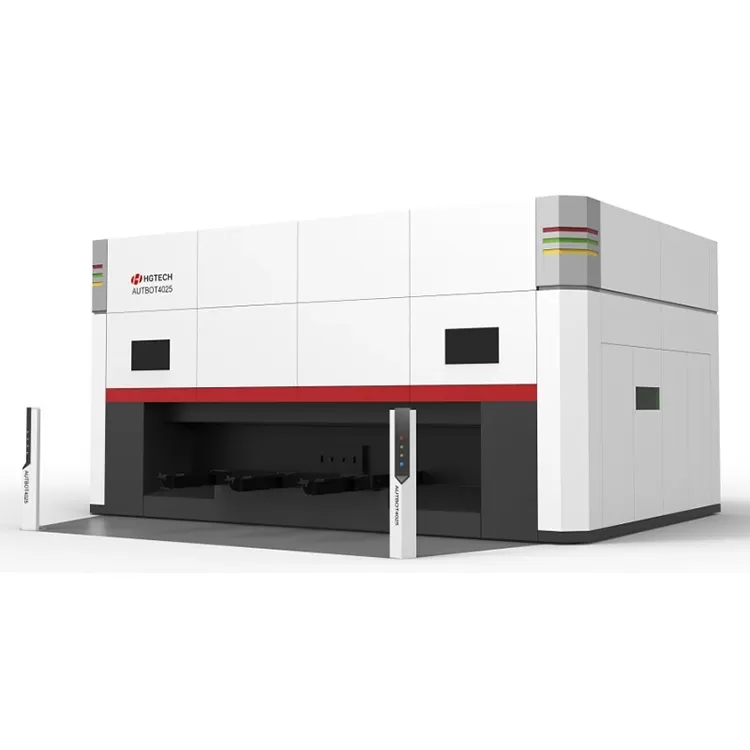

AUTOBOT series 3d laser cutting machine
stroke	X axis stroke	3000mm
	Y axis stroke	1500mm
	Z axis stroke	600mm
	A axis stroke	±135°
	C axis stroke	±n×360°
precision	X/Y/Z axis positioning accuracy	±0.03mm
	X/Y/Z axis repeated positioning accuracy	±0.02mm
	A/C axis positioning accuracy	0.03°
	A/C axis repeated positioning accuracy	0.01°
speed	X,Y , Z axis maximum positioning speed	90m/min
	X,Y , Z axis maximum compound speed	155m/min
	A/C axis maximum positioning speed	360°/s
	X,Y,Z axis maximum accelerated speed	1.0G
	X,Y,Z axis maximum compoundaccelerated speed	1.7G
	A/C axis maximum accelerated speed	3600°/s²
	Floating axis induction range	±17.5mm
· Table parameters	rotary table	Rotation diameter 4000mm Maximum load on one side. 400kg Single shift 3s
· Power supply	phase	3
	rated supply voltage	380V
	rated supply voltage	50Hz
	rated supply voltage	IP54
	working table	fixed table
· Weight and measures	weight	About 70000Kg
· Weight and measures	dimensions(length x width x height)	8000×7500×4000mm
