Introduction:Shipping Stepper motor 80w leaser cutting machine

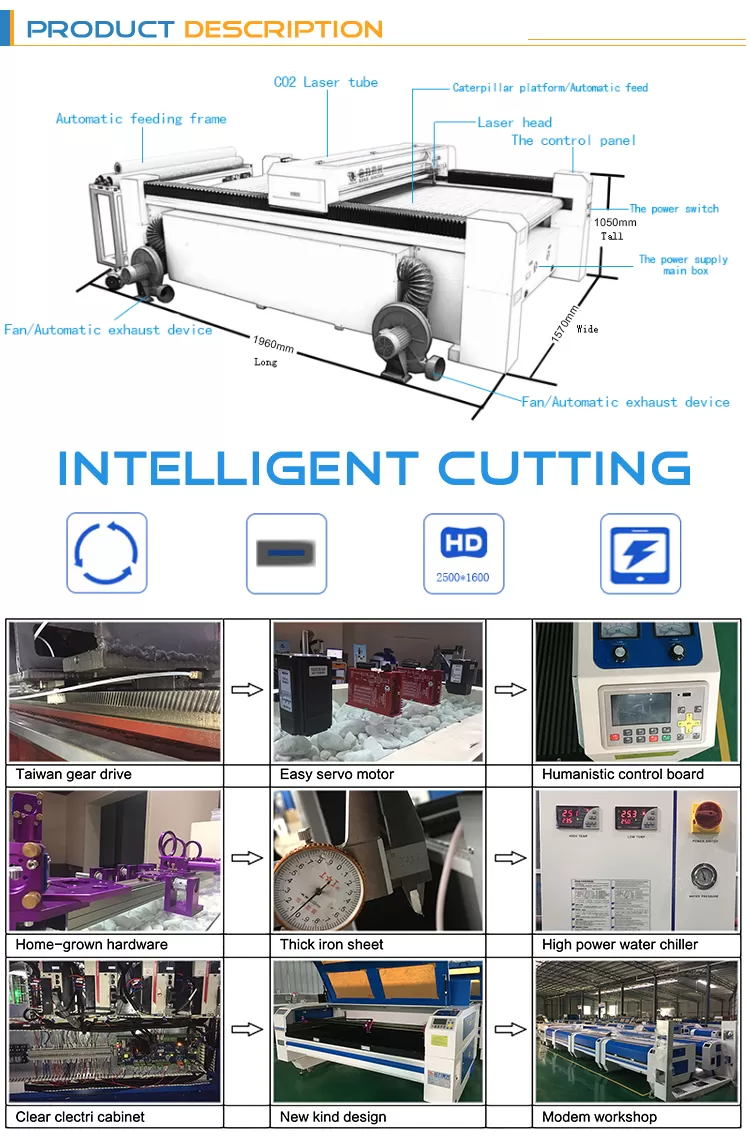

Shipping Stepper motor 80w leaser cutting machine
| Model | HL-1390C |
| Product Type | CO2 laser cutting engraving machine |
| Dimension | 1800*1400*1050mm |
| Engraving speed | Max 1500mm/s |
| Cutting speed | Max 800mm/s |
| Communiation interface | USB/Cable |
| Work table | Strip panel/Honey comb board |
| Laser power | 60w/80w/100w/130w/150w |
| Laser tube | Co2 Reci |
| Laser tube life time | 3000-5000 hours |
| Function | Cutting Nonmetal Materials |
| Cutting thickness | Base on materials |
| Working area | 1300*900mm |
| Gross weight | 260kg(Depend on the model 250-450kg) |
| Operating humidity | 5%-95% |
| Operating temperature | 0℃-45℃ |
| Location precision | ±0.05mm |
| Power supply | AC220V ±10% 50Hz |
| Drive mode | Stepper motor |
| Total power | 1250w |
| Design software | Original Helilaser software |
| Picture format supported | BMP PLT AI DXF DST |
| Color separation | Reaches 256 colors to cut |
| Cooling system | Water-cooling and protection system |
