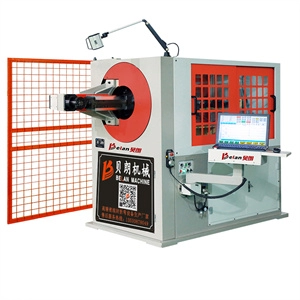

CNC wire forming machine 5700

Introduction:1. Belan provides global after-sales site services. 2.Belan machines can be connected to the Internet to realize remote control and solve your problems. 3.Service station: Argentina, Belarus, Brazil, Chile, Egypt, India, Indonesia, Mexico, Peru, Poland, R

Type		BL-3D-5700
Applicable Wire Size		Soft material Φ:3.0-8.0mm Hard material Φ:3.0-6.0mm
Number of control Axis		5 Axis
Number of wire feeding wheels		3 set wheels
Power Of wire Feeding Motor		4.5KW
Power Of Roating arm Motor		2.7KW
Power Of wire cutting Motor		1.0KW
Power Of wire I/O (forward-backard) motor		1.0KW
Power Of angle folding motor		2.0KW
Input Power		380V/50HZ/3PH
Weight		2800kg
*Machine Size(LWH)*		3310mm2000mm1900mm
Automatic feeder	Maximum load Weight:	1500Kg
	Diameter of Round Tray	φ1600mm
	Input Power	2.2KW
	Weight	800Kg
	*Size (LWH)*	2050mmX1960mmX1600mm

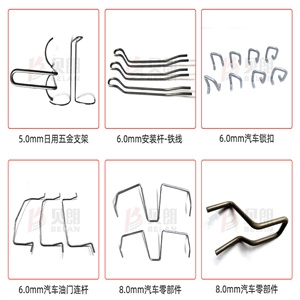

Machine features and functions: 1. Control the flattening +punching +bending by one computer, finish three processes at one time. 2. Use servo to flatten and punch hole, flattening, punching, and bending in one step, the perfect combination of intelligence and strength. 3. Reasonable modular design, smooth high surface finish products, uniform forming parts. 4. The main components are made of high-hardness materials, which are durable and stable. 5. Wide working range, it can produce many bending styles, free choice of model combination, suitable for wire diameter size 3.0-8.0mm:50-120mm6. The host device can be used alone or as a complete set, multi-functional.

Feature and Function

1. Belan provides global after-sales site services.

2.Belan machines can be connected to the Internet to realize remote control and solve your problems.
3.Service station: Argentina, Belarus, Brazil, Chile, Egypt, India, Indonesia, Mexico, Peru, Poland, Russia, Saudi Arabia, South
Africa, Spain, Thailand, Uzbekistan，Malaysia，Vietnam，Turkey

If you want to know more, please contact us immediately! We will give you more detailed product information you need.
