China Belan High-Precision 3d Wire Bending Machine Focusing On Providing Customers With Solutions For High-Precision 3d Wire Bending Machine, We Are Committed To Promoting The Transformation And Upgrading Of China'S Manufacturing Industry To Intelligent Manufacturing.

View Contact Details

Flinks: https://www.blbender.com

Cnc wire bending machine71000

Introduction:The principle of the wire bending machine is that the line does not turn, the production is faster. The production line by 4.0-10.0mm, car seat frame steel wire parts and kitchen wire and other production tools.It's mainly used In Automobiles, Kitchenware

Product Information

Type		BL-3D-71000
Applicable Wire Size		Soft material Φ:4.0-10.0mm Hard material Φ:4.0-8.0mm
Processing stroke		800mm
Number of control Axis		7Axis
Power Of wire Feeding Motor		4.5KW
Power Of Rolling Motor		2.7KW
Power Of Internal Angle Motor		2.7KW
Power Of Outer Angle Motor		2.7KW
Power Of Platform lifting motor		2.7KW
Power Of Pallet lifting motor		1.0KW
Power Of Wire Cuter Motor		2.7KW
Input Power		380V/50HZ/3PH
Weight		2600kg
*Machine Size(LWH)*		3950mm1350mm1600mm

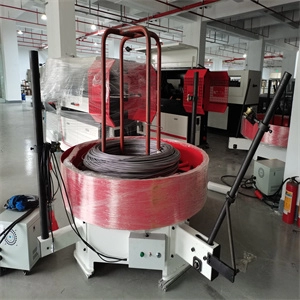

Automatic feeder	Maximum load Weight:	1000Kg
	Diameter of Round Tray	Φ1500mm
	Input Power	1.5KW
	Weight	800Kg
	*Size (LWH)*	2200mm2100mm850mm

Feature and Function 1.Taiwan Operation system and Imported Servo Motor. 2.Computer has Chinese and English Language , Easy Use . All motor can be controlled together or individua. 3 . Self Checking System is included in the Machine Machine can be stopped if machine found there is unqualified product. 4.during production , Operator can change any sizes on computer. 5.The Lubricating Oil Supply system can make sure Machine Long time running. 6.If machine find out there is no more wire , Wire Break or Kinking Wire , machine will stop automatically And Our machine can be speed up automatically oncemachine is running in good condition. 7.Our machine is good for products in following industries : Car seats skeleton , skeleton visor , car door lock rod , wire arts and crafts , kitchen utensils , tablewareand other Wire Foaming Auto parts , daily hardware products , computer appliances , machinery and other metal wire forming products From the productstructure is suitable for the production of framework products , flat support is more stable.

Function and Feature

1. Adopt Yaqi computer control system and imported servo motor. 2. Computer interface in Chinese and English (optional), simple operation, accurate positioning, all motors can run synchronously or independently. 3. There is an automatic shutdown design and automatic acceleration function of the wire frame when the wire is wireless, disconnected, or entangled, which makes the production easier and more effective. 4. Suitable for production: wire computer molding products such as automobile leisure, daily hardware products, electrical appliances, mechanical hardware, etc. Supports the production of framework products on the Internet, and the support is more stable.

If you want to know more, please contact us immediately! We will give you more detailed product information you need.

Factory Introduction

Certifications

Exhibition & Cooperation

Production Process

Packaging & Transportation

FAQ

Q1:Are you a trading company or manufacture? A: We are the direct manufacture we develop and produce wire bending machines with our patent, warmly welcome to our factory at any time.

Q2:How long is your production lead time? A: Normally 7 days for ordinary models and 30days for OEM equipment.

Q3:Is it easy to operate the wire bending machine? A: We provide a manual in English to show you how to operate the machine and provide 7*24 online service.

Q4:How to install the wire bending machine? A: We adjusted machines well before delivery, you can install and running the machine easily.

Q5:How do the after-sale service if the machines have a problem? A: We provide a 1-year free warranty and lifetime free training service, Within the warranty period, the general service is changing the damaged parts for the customers, but if the damage could be repaired by the customer, we would ask the customer to repair it by themselves and we return the part cost. If customer need on-site service, the travel cost and engineer’s salary (USD100/day) should be covered by the customer.

Q6:How many workers needed to run the machine? A: 1 operator can take care of at least 1 set machine easily. skilled operators can take care of 3-4 sets of our CNC wire bending machines.
