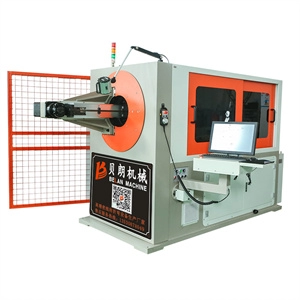

CNC wire bending machine 51200

Introduction:The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.

Product Information

Type		BL-3D-51200 Parameter
Applicable Wire Size		Soft material Φ:5.0-12.0mm Hard material Φ:5.0-8.0mm
Number of control Axis		5 Axis
Number of wire feeding wheels		4 set wheels
Power Of wire Feeding Motor		15.0KW
Power Of Roating arm Motor		3.5KW
Power Of wire cutting Motor		1.0KW
Power Of wire I/O (forward-backard) motor		1.0KW
Power Of angle folding motor		2.0KW
Input Power		380V/50HZ/3PH
Weight		3800kg
*Machine Size(LWH)*		3600mm X 1600mm X 2070mm
Automatic feeder	Maximum load Weight:	1500Kg
	Diameter of Round Tray	φ1600mm
	Input Power	2.2KW
	Weight	800Kg
	*Size (LWH)*	2050mmX1960mmX1600mm

Machine features and functions: 1. Control the flattening +punching +bending by one computer, finish three processes at one time. 2. Use servo to flatten and punch hole, flattening, punching, and bending in one step, the perfect combination of intelligence and strength. 3. Reasonable modular design, smooth high surface finish products, uniform forming parts. 4. The main components are made of high-hardness materials, which are durable and stable. 5. Wide working range, it can produce many bending styles, free choice of model combination, suitable for wire diameter size 3.0-8.0mm:50-120mm6. The host device can be used alone or as a complete set, multi-functional.

Feature and Function

1. Taiwan Topcon Operation system and Imported Servo Motor 2. Computer has Chinese and English Language, Easy Use. All motor can be controlled together or individual. 3. Self Checking System is included in the Machine. Machine can be stopped if machine found there is unqualified product. 4. During production, Operator can change any sizes on computer. 5. The Lubricating Oil Supply system can make sure Machine Long time running. 6. If machine find out there is no more wire, Wire Break or Kinking Wire, machine will stop automatically. And Our machine can be speed up automatically once machine is running in good condition. 7. Our machine is good for products in following industries: Car seats skeleton, skeleton visor, car door lock rod, wire arts and crafts, kitchen utensils, tableware and other Wire Foaming.

If you want to know more, please contact us immediately! We will give you more detailed product information you need.
