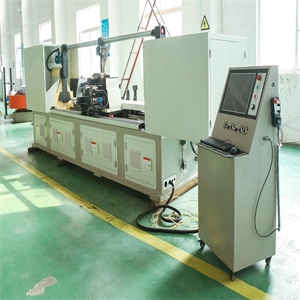

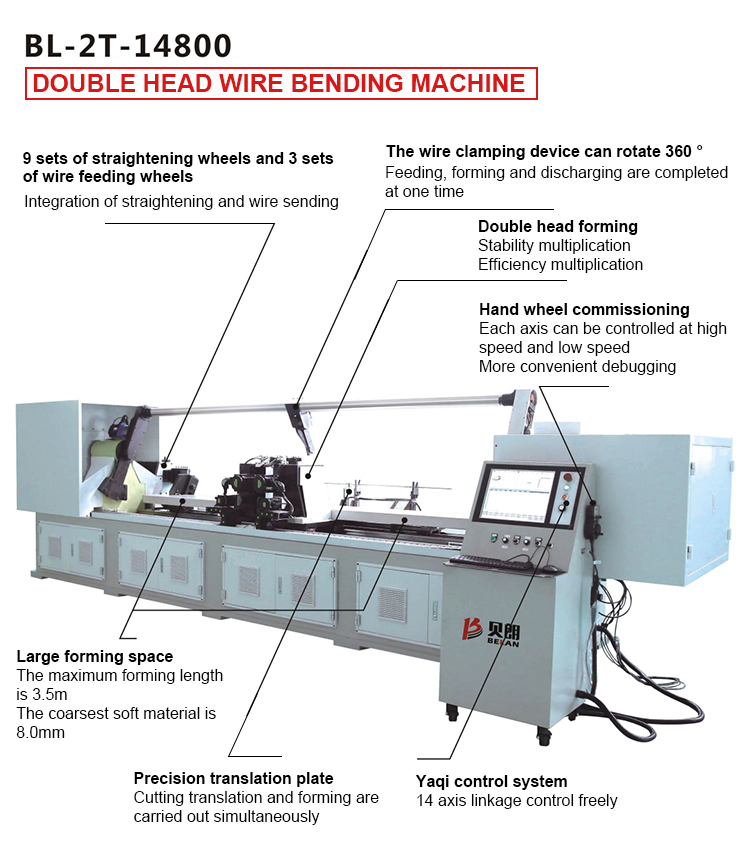

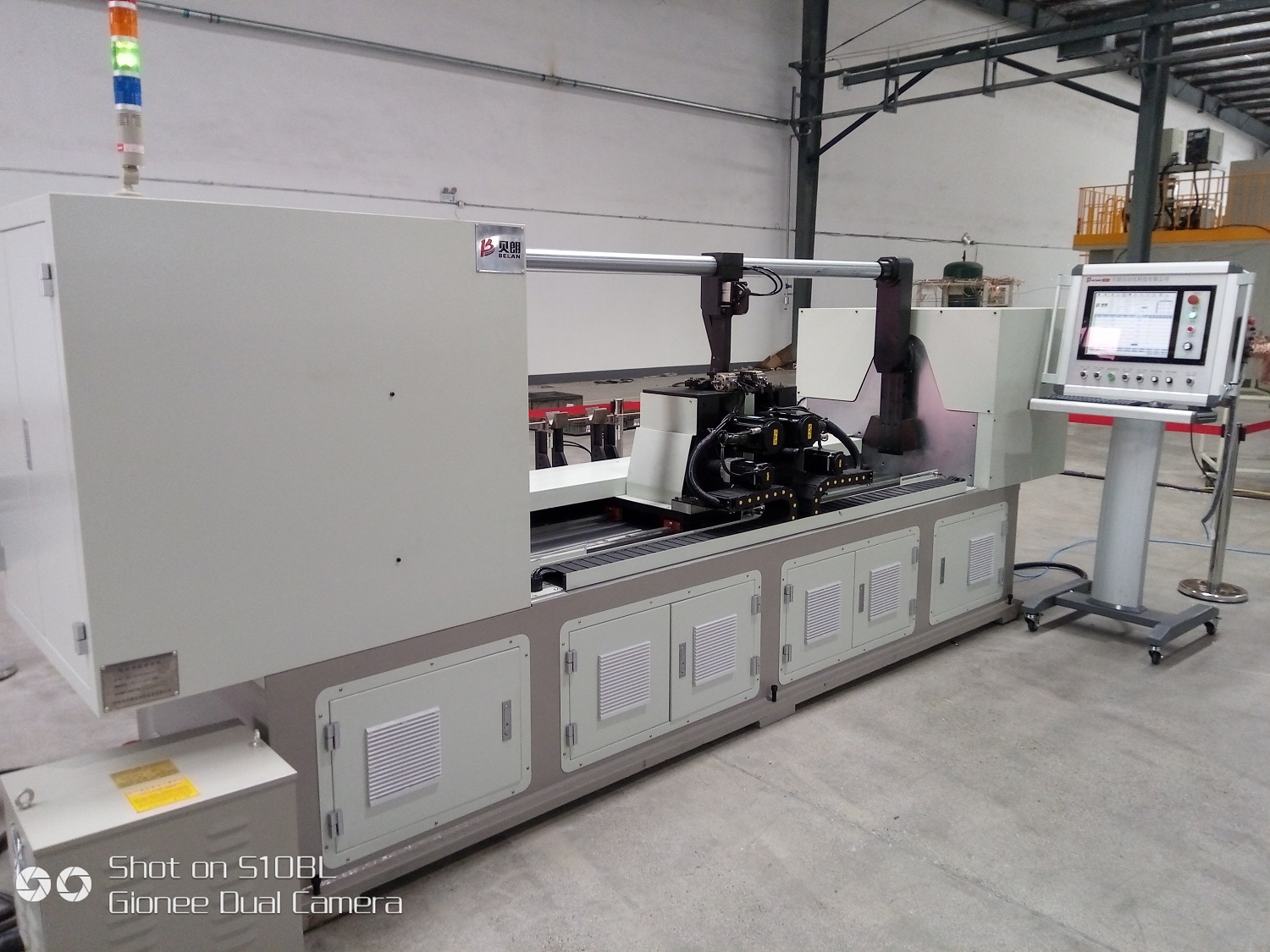

Cnc Double Head Wire Bending Machine 3-8mm

Introduction:Cnc Double Head Wire Bending Machine 14800

Product Information

Type		BL-2T-14800
Applicable Wire Size		Soft material Φ:3.0-8.0mm Hard material Φ:3.0-6.0mm
Number of control Axis		14 Axis
Number of wire feeding wheels		3 set wheels
Power Of wire Feeding Motor		2.0KW
(Left/right)Power Of Bengding Motor		2.7KW
(Left/right)Power Of Angle folding Motor		2.0KW
(Left/right)Power Of Movind Motor		2.7KW
Power Of Lifting Motor		1.0KW
Power Of wire Moving Motor		1.0KW
Power Of wire Clamp Motor		1.0KW
Power Of wire cutting Motor		1.0KW
Power Of Rotating Motor		2.0KW
Input Power		380V/50HZ/3PH
Weight		5500kg
*Machine Size(LWH)*		8000mm1700mm1700mm
Automatic feeder	Maximum load Weight	1500Kg
	Diameter of Round Tray	φ1600mm
	Input Power	2.2KW
	Weight	800Kg
	*Size (LWH)*	2050mmX1960mmX1600mm

Feature and Function

1.Taiwan Operation system and Imported Servo Motor. 2.Computer has Chinese and English Language , Easy Use . All motor can be controlled together or individual. 3.Self Checking System is included in the Machine Machine can be stopped if machine found there is unqualified product. 4.during production , Operator can change any sizes on computer. 5.The Lubricating Oil Supply system can make sure Machine Long time runnin. 6.If machine find out there is no more wire , Wire Break or Kinking Wire , machine will stop automatically And Our machine can be speed up automatically oncemachine is running in good condition.

7.Our machine is good for products in following industries : Car seats skeleton , skeleton visor , car door lock rod , wire arts and crafts , kitchen utensils , tablewareand other Wire Foaming Mainly for the auto parts industry produce car seat rear steel wire , car 2.0 foam wire , car double snake-shaped spring . As well asbending long quadrilateral frame and a variety of symmetrical or asymmetrical long piece of wire products . Significant speed and high stability than traditionalsingle-head equipment.

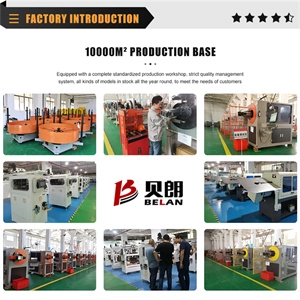

Factory Introduction

Certifications

Exhibition & Cooperation

Production Process

Packaging & Transportation

FAQ

Q1:Are you a trading company or manufacture? A: We are the direct manufacture we develop and produce wire bending machines with our patent, warmly welcome to our factory at any time.

Q2:How long is your production lead time? A: Normally 7 days for ordinary models and 30days for OEM equipment.

Q3:Is it easy to operate the wire bending machine? A: We provide a manual in English to show you how to operate the machine and provide 7*24 online service.

Q4:How to install the wire bending machine? A: We adjusted machines well before delivery, you can install and running the machine easily.

Q5:How do the after-sale service if the machines have a problem? A: We provide a 1-year free warranty and lifetime free training service, Within the warranty period, the general service is changing the damaged parts for the customers, but if the damage could be repaired by the customer, we would ask the customer to repair it by themselves and we return the part cost. If customer need on-site service, the travel cost and engineer’s salary (USD100/day) should be covered by the customer.

Q6:How many workers needed to run the machine? A: 1 operator can take care of at least 1 set machine easily. skilled operators can take care of 3-4 sets of our CNC wire bending machines.
