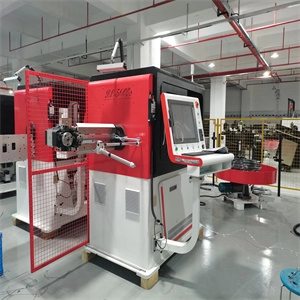

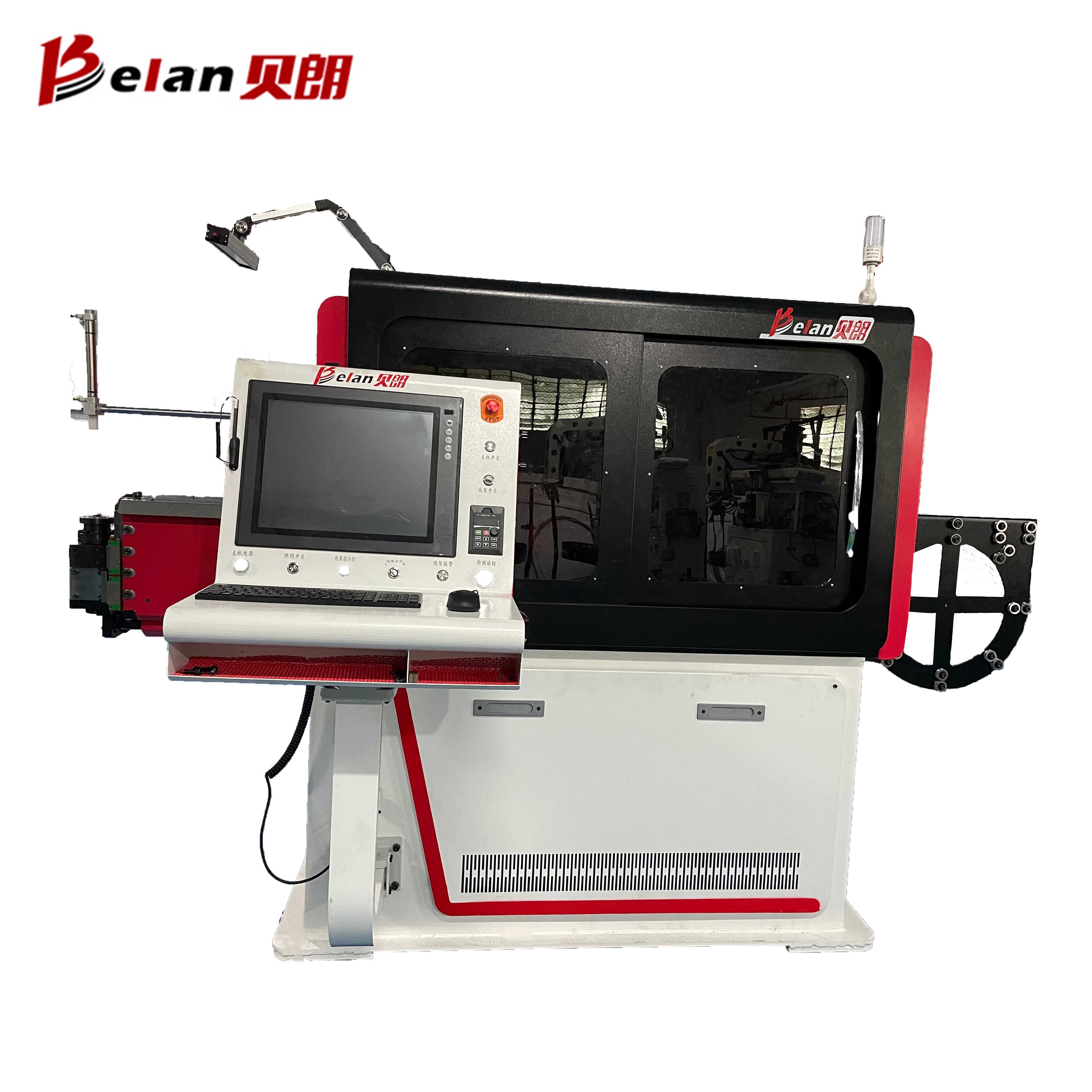

3D wire bending machine 5600

Introduction:The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.

Type		BL-3D-5600 Parameter
Applicable Wire Size		Soft material Φ:2.0-6.0mm Hard material Φ:2.0-4.0mm
Number of control Axis		5 Axis
Number of wire feeding wheels		2set wheels
Power Of wire Feeding Motor		3.0KW
Power Of Roating arm Motor		3.0KW
Power Of wire cutting Motor		1.0KW
Power Of angle folding motor		1.0KW
Power Of Lifting Motor		0.4KW
Input Power		380V/50HZ/3PH
Weight		2600kg
*Machine Size(LWH)*		3000mm1900mm1900mm
Automatic feeder	Maximum load Weight:	1000Kg
	Diameter of Round Tray	φ1600mm
	Input Power	2.2KW
	Weight	800Kg
	*Size (LWH)*	2050mmX1960mmX1600mm

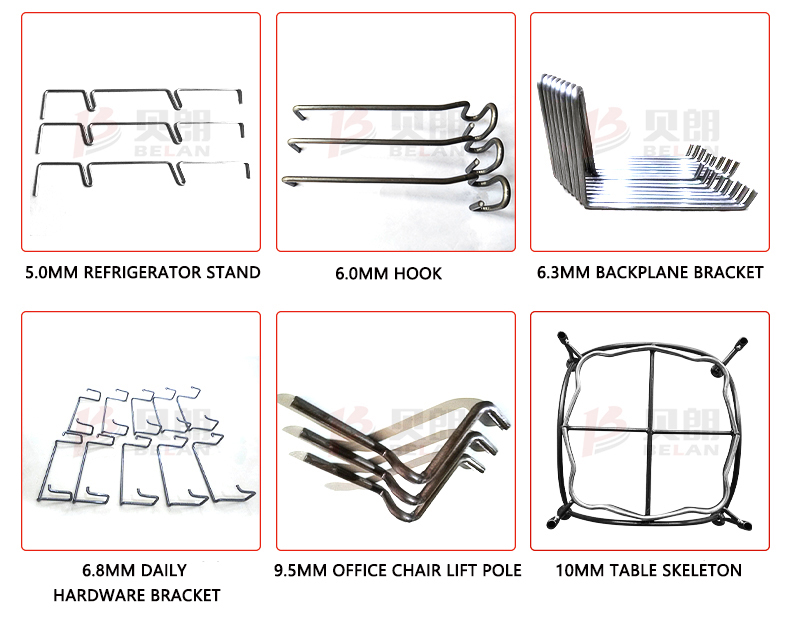

Machine features and functions: 1. Control the flattening +punching +bending by one computer, finish three processes at one time. 2. Use servo to flatten and punch hole, flattening, punching, and bending in one step, the perfect combination of intelligence and strength. 3. Reasonable modular design, smooth high surface finish products, uniform forming parts. 4. The main components are made of high-hardness materials, which are durable and stable. 5. Wide working range, it can produce many bending styles, free choice of model combination, suitable for wire diameter size 2.0-6.0mm: 3.0-8.0mm:5.0-120mm

6. The host device can be used alone or as a complete set, multi-functional.

If you want to know more, please contact us immediately! We will give you more detailed product information you need.

Factory Introduction

Certifications

Exhibition & Cooperation

Packaging & Transportation

FAQ

Q1:Are you a trading company or manufacture? A: We are the direct manufacture we develop and produce wire bending machines with our patent, warmly welcome to our factory at any time.

Q2:How long is your production lead time? A: Normally 7 days for ordinary models and 30days for OEM equipment.

Q3:Is it easy to operate the wire bending machine? A: We provide a manual in English to show you how to operate the machine and provide 7*24 online service.

Q4:How to install the wire bending machine? A: We adjusted machines well before delivery, you can install and running the machine easily.

Q5:How do the after-sale service if the machines have a problem? A: We provide a 1-year free warranty and lifetime free training service, Within the warranty period, the general service is changing the damaged parts for the customers, but if the damage could be repaired by the customer, we would ask the customer to repair it by themselves and we return the part cost. If customer need on-site service, the travel cost and engineer’s salary (USD100/day) should be covered by the customer.

Q6:How many workers needed to run the machine? A: 1 operator can take care of at least 1 set machine easily. skilled operators can take care of 3-4 sets of our CNC wire bending machines.
