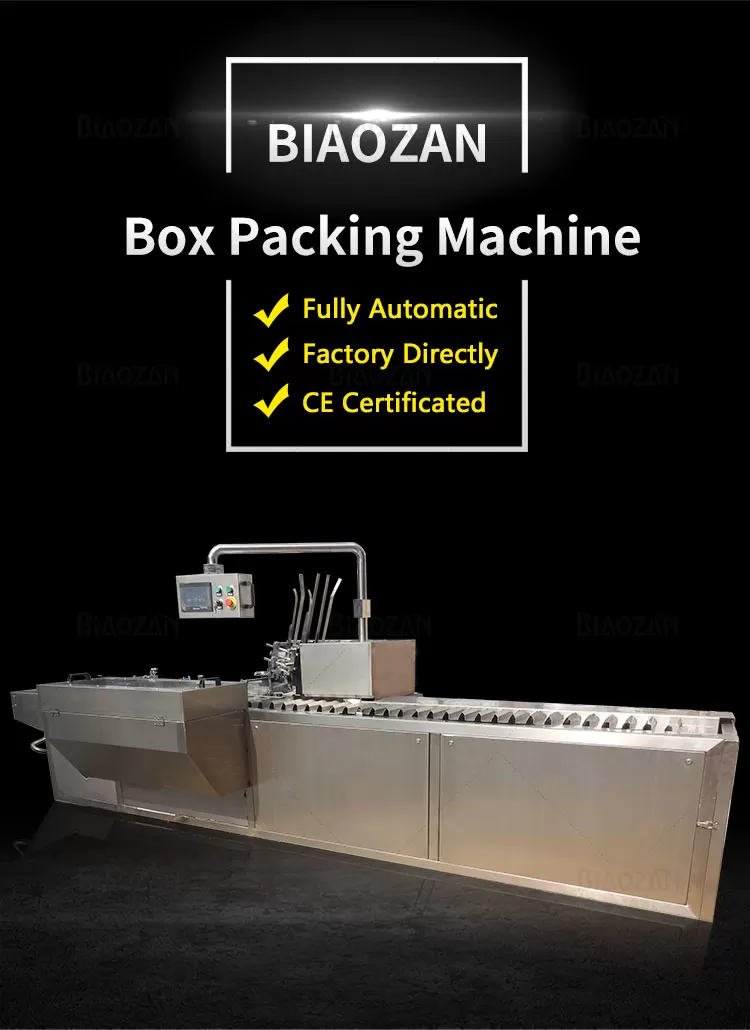

Box Packing Machine

Introduction:Box Packing Machine

Product Overviews

Technology

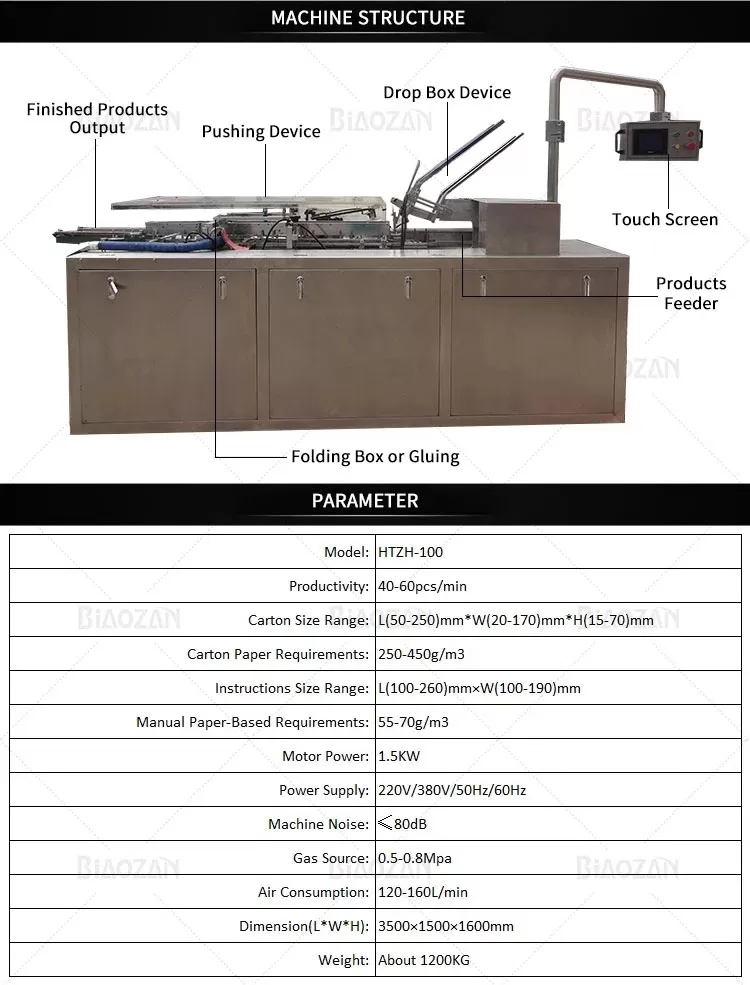

Cartoning Machine Technical Parameters:
Material Type	Number Reference
Productivity	40-60pcs/min
Carton Size Range	L(50-250)mmW(20-170)mmH(15-70)mm
Carton Paper Requirements	250-450g/m3
Instructions Size Range	L(100-260)mm×W(100-190)mm
Manual Paper-Based Requirement	55-70g/m3
Motor Power	1.5KW
Power Supply	220V/380V/50Hz/60Hz
Machine Noise	≤80dB
Gas Source	0.5-0.8Mpa
Air Consumption	120-160L/min
Dimension(LWH)	3500×1500×1600mm
Weight	About 1200KG

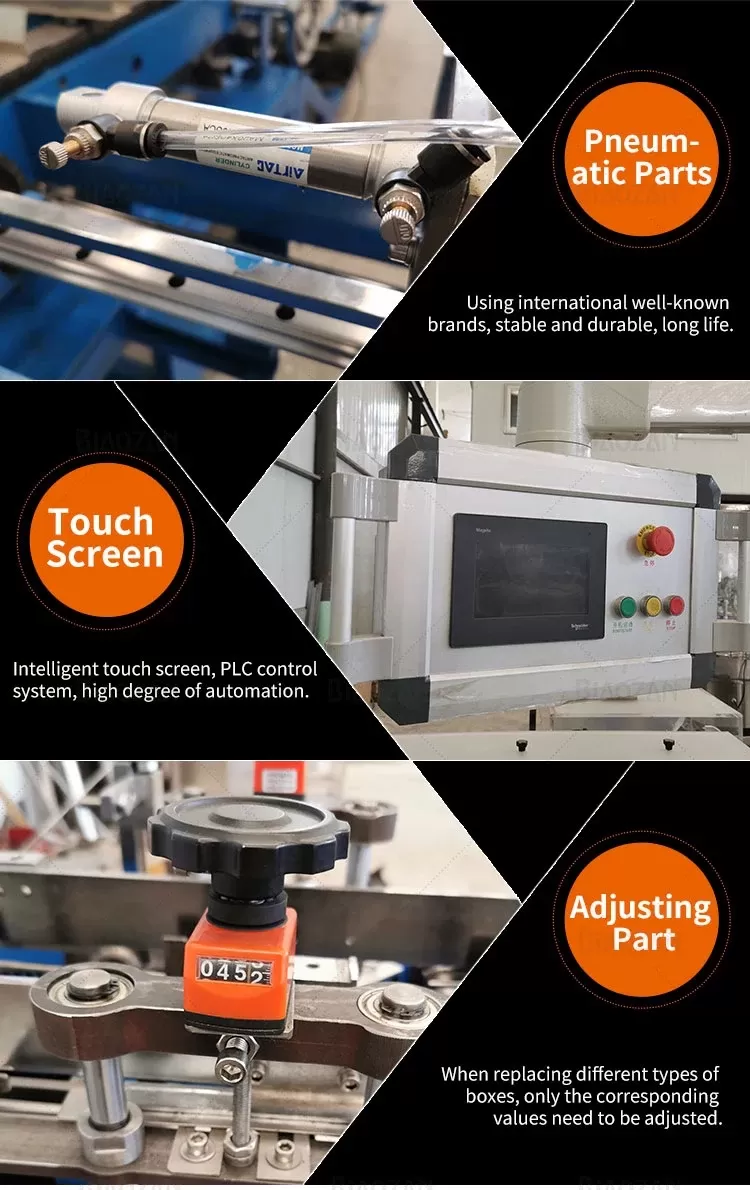

Features: No product does not give leaflet, no leaflet does not give carton. Products not packed into the right position, machine stop, and alarm. If no cartons, the machine delayed stop and alarm. Continuous no leaflet, machine stop, and alarm. Air pressure and vacuum pressure too low, machine stop and alarm. A back pusher device is more convenient. Handwheel can help to change size easily. The main driving system has over-loading protection. Servo feeding products system. Electrical parts use internationally famous brands. Automatic display packing speed, fault, and count.

Our Advantages:
20 years’ experience in Packaging Machinery manufacturing.
16 years of experience in international trade, serving customers with more than 100 countries and regions.
Strong technical strength, can quickly resolve customer problems.
Also, OEM/ODM services are available.

After-Sales Service:
After-sales service, our engineer is available to supply a door to door service for our customers and also they will tell our customers how to operate the machine. And also all of our engineers are ready for the service of the customer for 24 hours per day. We have sufficient spare parts stock and can meet your needs in time.
