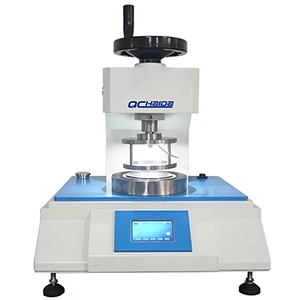

Fabric Hydrostatic Pressure Test Machine

Introduction:Fabric Hydrostatic Pressure Tester Strength Test Machine Textile Testing Instruments HD-W825

Detail Information：

Power:	Electronic	Measuring Range:	500pa-200kpa
Water Pressure Rise Rate:	10 Or 60 CmH2O/min	Accuracy:	0.2%FS
Water Tank Capacity:	3.7Ld	Power Source:	1phase, AC220± 10%, 50 Hz
High Light:	Fabric Hydrostatic Pressure Tester 200kpa Fabric Hydrostatic Pressure Tester 100cm2 Strength Test Machine

Fabric Hydrostatic Pressure Tester Testing standard

AATCC 127 DIN 53886 JIS L1092 EN ISO 20811 ISO 811

Technical parameters：

Technical Index	HD-W825
Measuring range	500pa-200kpa
Water pressure rise rate	10 or 60 cmH2O/min
Accuracy	0.2%FS
Unit	cmH₂O, Pa, kPa, mmHg, mmH₂O, PSI, Bar (optional)
Sample chuck area	100cm²
Water tank capacity	3.7Ld
Extarnal Dimensions	600x460x680mm
Weight	50kg
Power source	1phase, AC220± 10%, 50 Hz
Test methods	Boost test, Constant pressure timing test, Water leakage test, Deflection test
